    T5G 6x4 Specification Sheet

    Overview

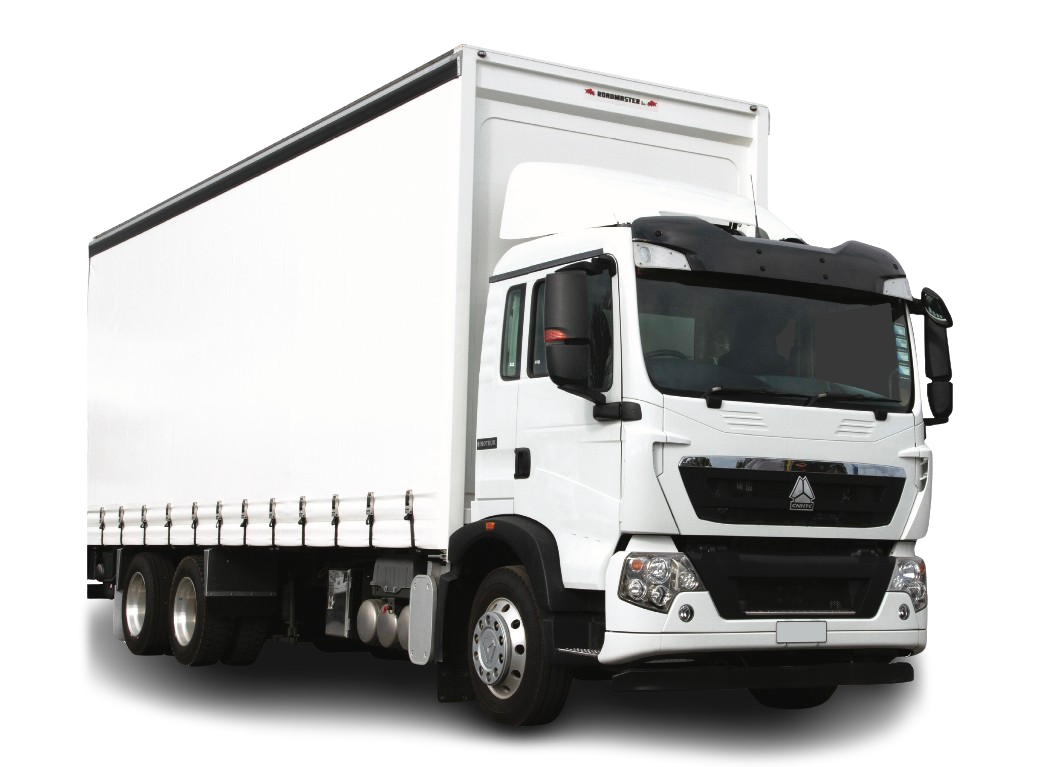

    Sitrak’s T5G 6×4 is a versatile and powerful vehicle designed to meet your needs with efficiency and reliability. This truck combines advanced safety features, robust performance, and a longer spacious cargo capacity to provide an exceptional driving experience.

    • Leading safety features include a built in crumple zone, EBS and HSA
    • Allison 3000 automatic transmission for ease of drivability around town
    • Metromaster body built by Roadmaster
    • 14 Pallet capacity, 2980mm internal height
    • Dautel Tail Lift
    • High torque 330HP engine
    • Flexible chassis configurations to meet your transportation requirements
    View Specificaton
    Features
    Full Specifications

    Explore the comprehensive specifications of the T5G 6×4 Cargo Cab & Chassis, detailing its robust performance, advanced engineering, and versatile capabilities.

    DIMENSIONS (mm)


    		T5G Cab
    		G5 Cab
    OALOverall Length1103011030
    FOHFront Overhang14301430
    WBWheelbase63006300
    ROHRear Overhang33003300
    FSCFront Spring Centre460460
    CTCab to Trunnion58405840
    CBLCab to Body Length91409140
    RTRear Track18301830
    ORTOuter Rear Track24502450
    Front ground clearanceFront Ground Clearance285285
    Rear ground clearanceRear Ground Clearance250250
    Turning circleTurning Circle (Kerb to Kerb)1987019870
    Approach AngleApproach Angle (º)1919
    Departure AngleDeparture Angle (º)1313


    CAB DIMENSIONS (mm)


    		T5G CabG5 Cab
    OHUnladen Height30703070
    Laden heightLaden Height30103010
    CWCab Width24892489


    SUSPENSION (mm)


    		T5G CabG5 Cab
    RFHUnladen967967
    LadenLaden10011001


    MASS RATINGS

    GVM / GCM 25.0 tonnes / 44.0 tonnes



    		T5G CabG5 Cab
    Chassis mass frontFront4.51 tonnes*4.51 tonnes*
    Chassis mass rearRear2.82 tonnes*2.82 tonnes*
    Chassis mass totalTotal7.33 tonnes*7.33 tonnes*

    *Weights are to standard configuration and include chassis cab with no driver or fuel.

    ENGINE

    330 hp Euro 5 German Technology MC07.33-50

    Power Rating: 240 kW @ 2300 rpm

    Maximum Torque: 1250 Nm @ 1200-1800 rpm

    Emissions Technology: Selective Catalytic Reduction

    Total Displacement: 6.870 litre

    Exhaust: Catalytic muffler with integrated SCR catalyser

    TRANSMISSION

    6-speed Allison Automatic

    Model: 3000 Series (Allison)

    • 2-pedal operation with automatic or manual shift control

    Optional: Power Take-Off (PTO)

    STEERING

    Type: ZF 8098 power-assisted with gear driven pump

    Gear Ratio: 23:01 (22.20~26.20)

    FRONT AXLE & SUSPENSION

    Type: VPD71DS (Disc)

    Capacity: 7.0 tonnes

    Suspension Type: Non-Independent 3 parabolic leaf springs

    REAR AXLE & SUSPENSION

    Sinotruk MCY11 (Disc)

    Capacity: 18.0 tonnes

    Ratios: 4.63

    • Optional: 3.08, 3.36, 4.11, 5.29

    Suspension Type: Air Ride 8 bag with ECAS to control ride height

    Differential: Driver controlled inter-axle lock and differential lock

    BRAKES

    Type: Wabco EBS/ESC/ASR

    Park Brake: Spring brake

    Auxiliary Braking: Air controlled exhaust brake

    Front Diameter: 430 mm Disc

    Rear Diameter: 375 mm Disc

    • Aluminium air reservoirs

    FUEL CAPACITY

    600 litre rectangular aluminium tank & 40 litre AdBlue tank (LHS)

    CHASSIS

    Type: 270 x 85 x 8 mm steel channel

    • Polypropylene bumper with fog and driving lights

    • FUPS

    • Trapezium Frame

    ELECTRICAL SYSTEM

    Type: Double/Control Positive Pole

    Voltage: 24 Volt

    Batteries: 2x12V 165 Ah with isolation switch

    Alternator: 28 Volt – 80 Amp

    WHEELS & TYRES

    Wheels: 22.5×9.0 10-stud 335 mm alloy

    Front Tyres: 295/80 R22.5

    Rear Tyres: 11 R22.5

    CAB FEATURES

    • Fully adjustable ISRI self-levelling air suspension driver’s and passenger seat with headrest, armrest, heated and ventilated, adjustable damper and integrated lap-sash retractor seat belt

    • 90° opening doors with electronically operated windows

    • 7.1” Multimedia touchscreen Radio/Wi-Fi/Bluetooth and steering wheel controls

    • Overhead storage compartments, centre console drawer and tray, dual cupholders, door pockets

    • Automatic climate control

    • Hill Start Assist

    • Daytime Running Lights (DRL)

    • Electrohydraulic cab tilt

    • Four-point cab mounting system with mechanical suspension and dampers at rear (T5G)

    • Four-point cab mounting system with air bag suspension (G5)

    • Heated and electric exterior mirrors with independent convex “spotter” mirror

    • CCTV 4 camera front, rear and side facing
